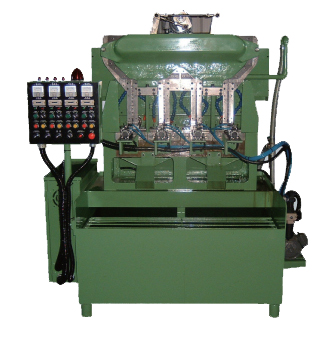

Flange Nut Tapping Machine

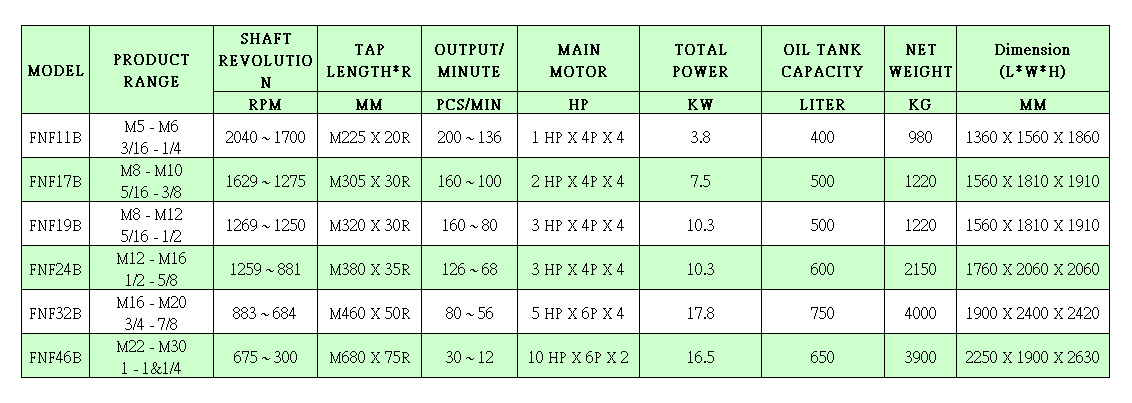

| Model | Product Range | Shaft Revolution (RPM) | TAP LENGTH X R (MM) | OUTPUT/Minute (PCS/MIN) |
|---|---|---|---|---|
| FNF11B | M5-M6 3/16-1/4 |
2040-1700 | M225 X 20R | 200-136 |
| FNF17B | M8-M10 5/16-3/8 |
1629-1275 | M305 X 30R | 160-100 |
| FNF19B | M8-M12 5/16-1/2 |
1269-1250 | M320 X 30R | 160-80 |
| FNF24B | M12-M16 1/2-5/8 |
1259-881 | M380 X 35R | 126-68 |
| FNF32B | M16-M20 3/4-7/8 |
883-684 | M460 X 50R | 80-56 |
| FNF46B (Two Spindle) | M22-M30 1"-1&1/4" |
675-300 | M680 X 75R | 30-12 |
