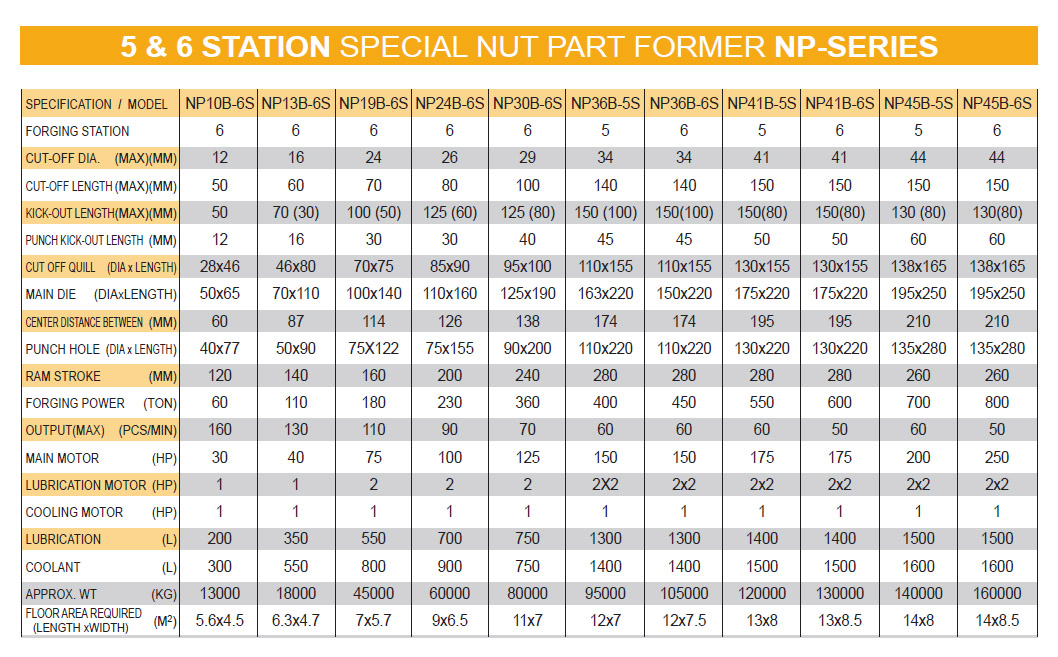

5 & 6 Statin Special Nut Part Former NP-Series
| Model | CUT-OFF Dia. (max) (mm) | CUT-OFF LENGTH (max) (mm) | KICK-OUT LENGTH (max) (mm) | PUNCH KICK-OUT Length |
|---|---|---|---|---|
| NP10B-6S | 12 | 50 | 50 | 12 |
| NP13B-6S | 16 | 60 | 70(30) | 16 |
| NP19B-6S | 24 | 70 | 100(50) | 30 |
| NP24B-6S | 26 | 80 | 125(60) | 30 |
| NP30B-6S | 29 | 100 | 125(80) | 40 |
| NP36B-5S | 34 | 140 | 150(100) | 45 |
| NP36B-6S | 34 | 140 | 150(100) | 45 |
| NP41B-5S | 41 | 150 | 150(80) | 50 |
| NP41B-6S | 41 | 150 | 150(80) | 50 |
| NP45B-5S | 44 | 150 | 130(80) | 60 |
