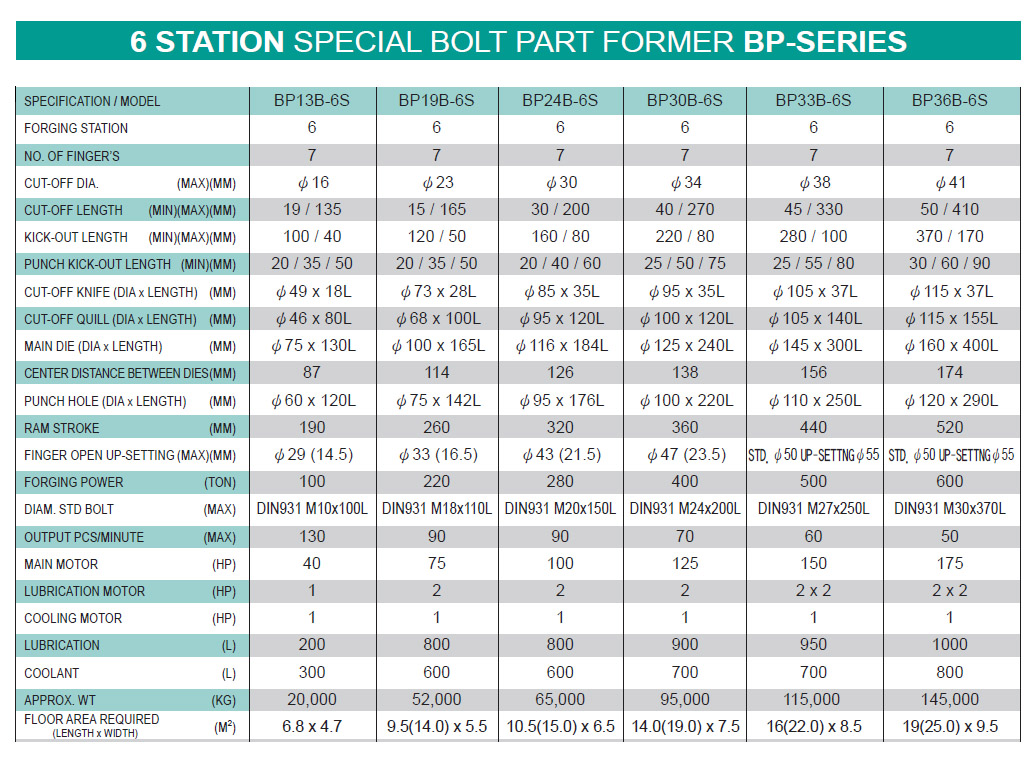

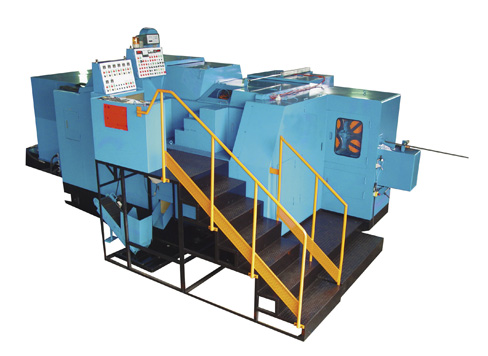

6 Station Special Bolt Part Former BP-Series
| Model | CUT-OFF Dia. (max) (mm) | CUT-OFF LENGTH (max) (mm) | KICK-OUT LENGTH (max) (mm) | PUNCH KICK-OUT Length |
|---|---|---|---|---|
| BP13B-6S | 16 | 19/135 | 100/40 | 20/35/50 |
| BP19B-6S | 23 | 15/165 | 120/50 | 20/35/50 |
| BP24B-6S | 30 | 30/200 | 160/80 | 20/40/60 |
| BP30B-6S | 34 | 40/270 | 220/80 | 25/50/75 |
| BP33B-6S | 38 | 45/330 | 280/100 | 25/55/80 |
| BP36B-6S | 41 | 50/410 | 370/170 | 30/60/90 |
