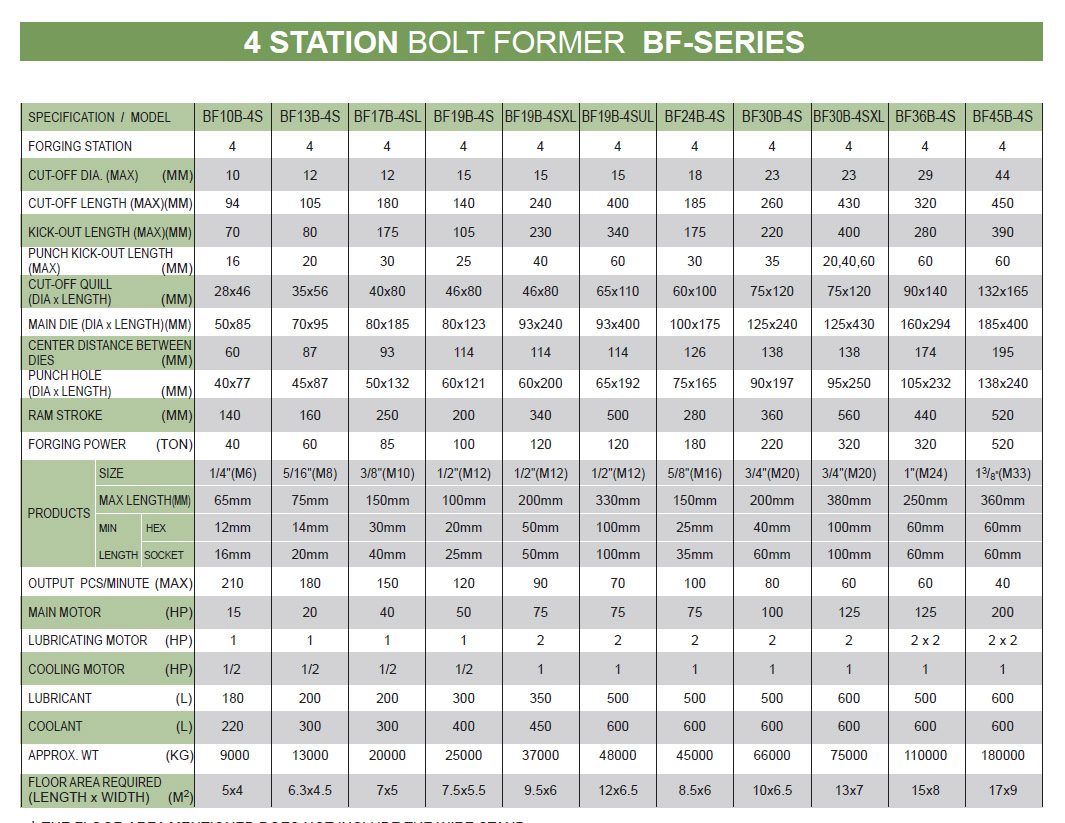

4 Station Bolt Former BF-Series
| Model | CUT-OFF Dia. (max) (mm) | CUT-OFF LENGTH (max) (mm) | KICK-OUT LENGTH (max) (mm) | PUNCH KICK-OUT Length |
|---|---|---|---|---|
| BF10B-4S | 10 | 94 | 70 | 16 |
| BF13B-4S | 12 | 105 | 80 | 20 |
| BF17B-4SL | 12 | 180 | 175 | 30 |
| BF19B-4S | 15 | 140 | 105 | 25 |
| BF19B-4SXL | 15 | 240 | 230 | 40 |
| BF19B-4SUL | 15 | 400 | 340 | 60 |
| BF24B-4S | 18 | 185 | 175 | 30 |
| BF-30B-4S | 23 | 260 | 220 | 35 |
| BF30B-4SXL | 23 | 430 | 400 | 20,40,60 |
| BF36B-4S | 29 | 320 | 280 | 60 |
