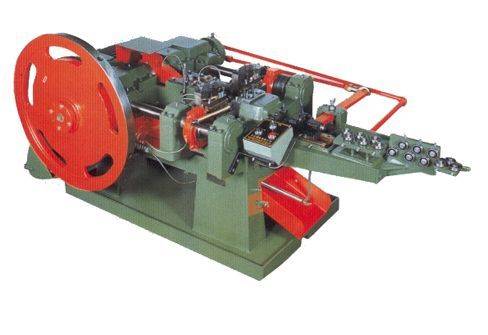

Nail Making M/C
| MODEL | WIRE GAUGE BWG (mm) |
EFFECTIVE LENGTH (mm) |
SPEED(R.P.M.) (PCS) |
motor(HP)*P | N.W. KGS | G.W. KGS | FLOOR SPACE L*W*H |
| CC-1AN | #15~20 (0.9~18.3) | 1/2"~1" (12~25) | 550 | 1 HP*4P | 700 | 800 | 57*41*41 |
| CC-2BN | #13~15 (1.83~2.4) | 1 1/4"~2 1/2" (32~64) | 450 | 2 HP*4P | 900 | 1100 | 61*45*46 |
| CC-3CN | #10~13 (2.4~3.4) | 2 1/4"~3" (56~76) | 300 | 3 HP*4P | 1200 | 1350 | 82*64*52 |
| CC-4DN | #8~10 (3.4~4.2) | 3 1/4"~4" (83~101) | 250 | 5 HP*4P | 1450 | 1620 | 87*66*58 |
| CC-5EN | #6~8 (4.2~5.2) | 4 1/4"~6" (108~152) | 180 | 7 1/2 HP*4P | 2500 | 2700 | 113*71*62 |
| CC-6FN | #4 (7.0) | 8" (200) | 50 | 10 HP*4P | 3200 | 3500 | 120*84*68 |
