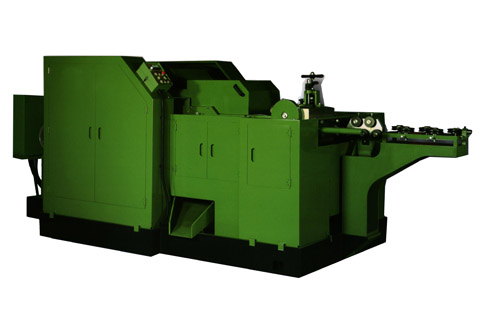

1D2B Heading Machine ZH-Series

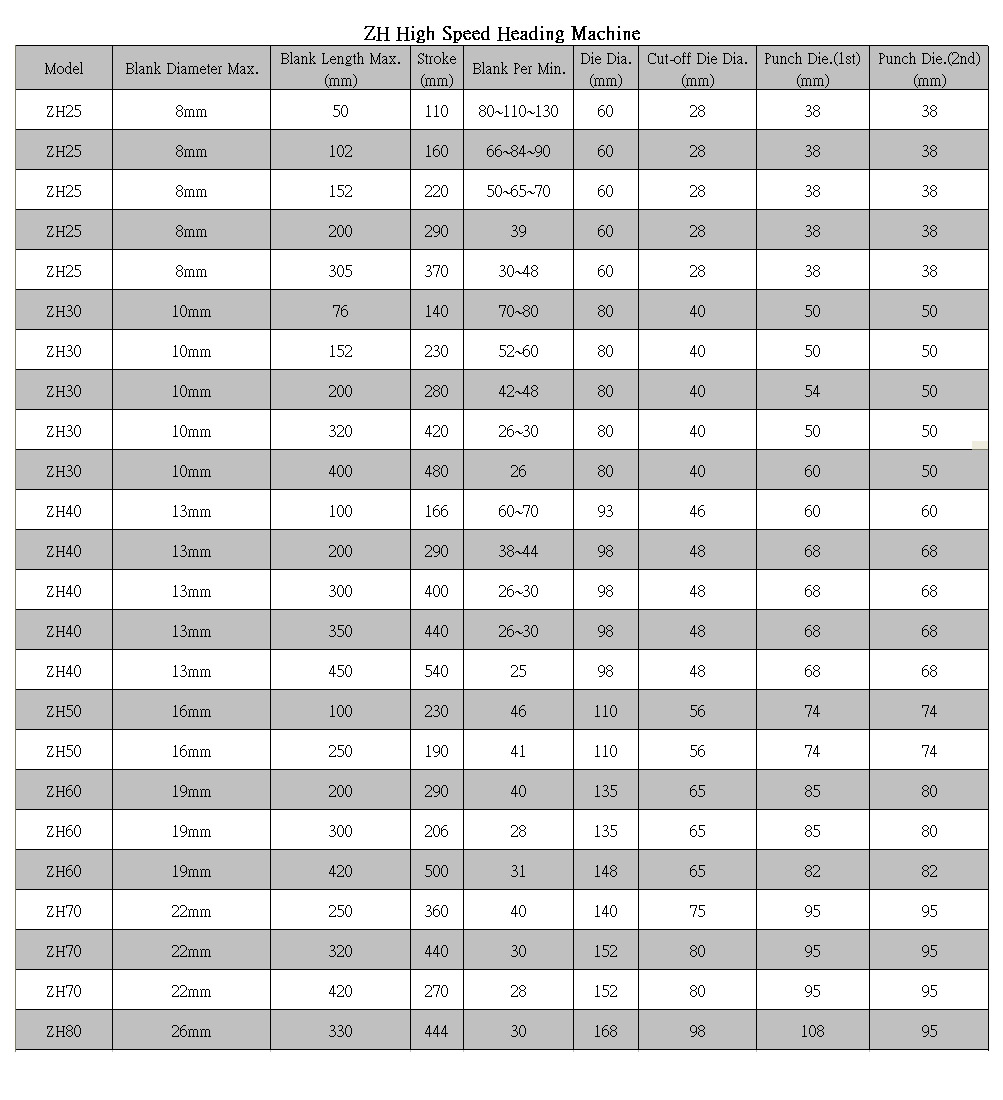

| Model | Blank Diameter Max. | Blank Length Max. (mm) |
Stroke (mm) |
Blank Per Min. |
|---|---|---|---|---|
| ZH25 | 8mm | 50 | 110 | 80~110~130 |
| ZH25 | 8mm | 102 | 160 | 66~84~90 |
| ZH25 | 8mm | 152 | 220 | 50~65~70 |
| ZH25 | 8mm | 200 | 290 | 39 |
| ZH30 | 10mm | 76 | 120 | 70~80 |
| ZH30 | 10mm | 152 | 140 | 52~60 |
| ZH40 | 13mm | 100 | 166 | 60~70 |
| ZH40 | 13mm | 200 | 290 | 38~44 |
| ZH50 | 16mm | 100 | 230 | 46 |
| ZH50 | 16mm | 250 | 190 | 41 |
| ZH60 | 19mm | 200 | 290 | 40 |
| ZH70 | 22mm | 250 | 360 | 40 |
