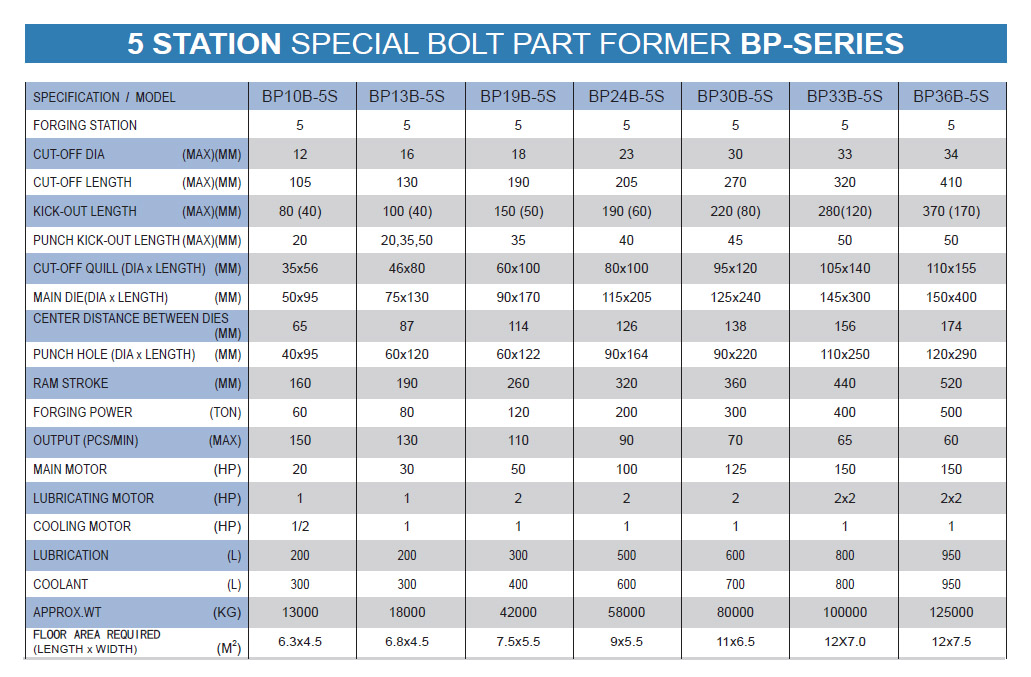

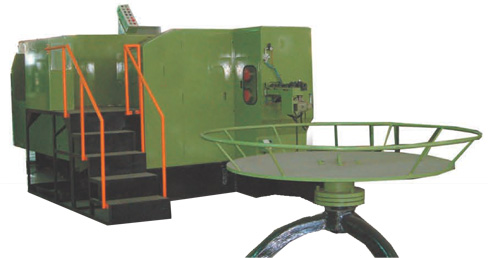

5 Station Special Bolt Part Former BP-Series
| Model | CUT-OFF Dia. (max) (mm) | CUT-OFF LENGTH (max) (mm) | KICK-OUT LENGTH (max) (mm) | PUNCH KICK-OUT Length |
|---|---|---|---|---|
| BP10B-5S | 12 | 105 | 80(40) | 20 |
| BP13B-5S | 16 | 130 | 100(40) | 20,35,50 |
| BP19B-5S | 18 | 190 | 150(50) | 35 |
| BP24B-5S | 23 | 205 | 190(60) | 40 |
| BP30B-5S | 30 | 270 | 220(80) | 45 |
| BP33B-5S | 33 | 320 | 280(120) | 50 |
| BBP-36B-5S | 34 | 410 | 370(170) | 50 |
